SKF BEARING INSERT YAT 204-012

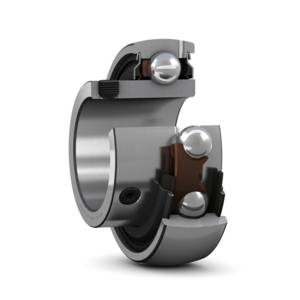

Insert bearing with set screw SKF YAT 204-012, Outer diameter: 47 mm | Inner diameter: 19.05 mm | Width: 25.5 mm

Y-bearing YAT Series

See technical information
References
SKF:YAT 204-012
Rubix:131A9559
Manufacturer :78248
EAN:7316571504551
brand logo
Technical specifications
Inner diameter19.05 mm
Outer diameter47 mm
Width25.5 mm
See all Specifications

Product details : SKF BEARING INSERT YAT 204-012

Insert bearings are based on sealed deep groove ball bearings. This variant of insert bearing is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on one side, and is locked onto the shaft by tightening two (set) screws on the inner ring.

Strengths

- Quick and easy to mount onto the shaft
- Long service life
- Reduce noise and vibration levels

Technical specifications

Attributes
Logistic Weight135 g
Inner diameter19.05 mm
Outer diameter47 mm
Width25.5 mm
Sealingopen
Seriesyat
Limit speed8500 rpm
Basic static load, radial - C0r6550 N
Basic dynamic load, radial - Cr12700 N
Show UNSPSC/ECL@SS
£ 19.26 excl. VAT
/ Each
£ 23.11 incl. VAT
  • Usually arrives within 14 working days
