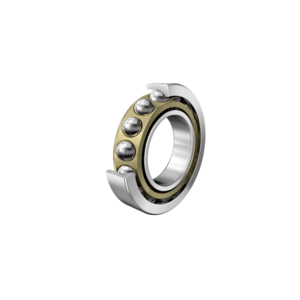

Angular contact ball bearing FAG 7226-B-XL-MP-UB, Outer diameter: 230 mm | Inner diameter: 130 mm | Width: 40 mm

Angular contact ball bearing

See technical information

References

FAG:7226-B-XL-MP-UB
Rubix:274A7115
Manufacturer :0928612450000
EAN:4054371016388
brand logo

Technical specifications

Inner diameter130 mm
Outer diameter230 mm
Width40 mm
See all Specifications

Product details : FAG 7226-B-XL-MP-UB ANGULAR CONTACT BALL BEARING

Angular contact ball bearing 72..-B-XL-MP, single row, X-life, solid brass cage
Angular contact ball bearing 72..-B-XL-MP, single row, X-life, solid brass cage

Technical specifications

Attributes
Inner diameter130 mm
Outer diameter230 mm
Width40 mm
Bearing Clearancecn
Sealingopen
Series72..-b-xl-mp
Cagebrass
Weight6.88 kg
Reference speed3350 rpm
Limit speed4850 rpm
Angle40 °
Precisionp0 (normal / abec 1)
Basic static load, radial - C0r204000 N
Basic dynamic load, radial - Cr200000 N
£ 413.19 excl. VAT
/ Each
£ 495.83 incl. VAT
  • Usually arrives within 14 working days
