Deep groove ball bearing SKF 309-2Z, Outer diameter: 100 mm | Width: 25 mm | Inner diameter: 45 mm
Ball bearing Radial deep groove Single row, with filling slot
References
skf:309-2Z
rubix:103A3228
manufacturer :81545
ean:7316577292933

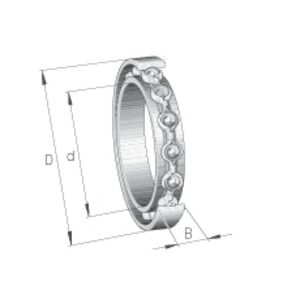

Technical specifications
| Inner diameter | 45 mm |
|---|---|
| Outer diameter | 100 mm |
| Width | 25 mm |
Product details : SKF MAX LOAD BEARING 309-2Z
Deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes.
Technical specifications
Attributes
| Logistic Weight | 911,6 g |
|---|---|
| Inner diameter | 45 mm |
| Outer diameter | 100 mm |
| Width | 25 mm |
| Sealing | two metal shields |
| Bearing Clearance | cn |
| Series | 309 |
| Material | bearing steel |
| Cage | steel |
| Reference speed | 13000 rpm |
| Limit speed | 6000 rpm |
| Basic static load, radial - C0r | 44 N |
| Basic dynamic load, radial - Cr | 55 N |
Show UNSPSC/ECL@SS
£ 80.39 excl. VAT
/ Each
£ 96.47 incl. VAT
Usually arrives within 14 working days
