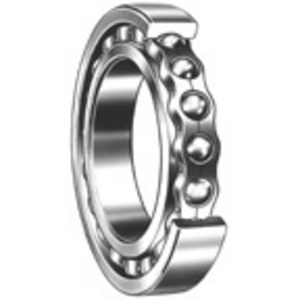

Deep groove ball bearing Timken 63004-2RS, Outer diameter: 42 mm | Width: 16 mm | Inner diameter: 20 mm
Ball bearing
See technical informationReferences
Timken:63004-2RS
Rubix:105A8860
EAN:0087796294660
Product details : TIMKEN 63004-2RS BALL BEARING WITH SEALS
A non-seperable single row ball bearing with deep raceway grooves and rubber seals on both sides. Suitable for running at high speeds and can accommodate axial loads in both directions, in addition to radial loads, due to the close conformity between the raceway grooves and balls.
Technical specifications
Attributes
| Inner diameter | 20 mm |
|---|---|
| Outer diameter | 42 mm |
| Width | 16 mm |
| Sealing | two rubber seals |
| Bearing Clearance | cn |
| Series | wide section ball bearings (62000-63000 series) |
| Material | rubber |
| Limit speed | 11000 rpm |
| Thickness | 16 mm |
| Basic static load, radial - C0r | 5 N |
| Basic dynamic load, radial - Cr | 9.4 N |
| Weight | 0.09 kg |
Show UNSPSC/ECL@SS
£ 44.75 excl. VAT
/ 5 pieces
£ 53.70 incl. VAT
- Delivery usually within ( 7 ) days
