SANDVIK R216.42-02030-AK60A H10F 5743399

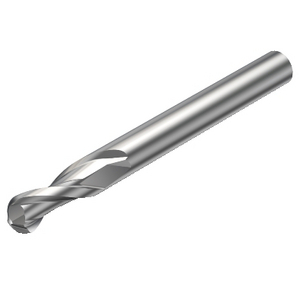

Ball nose end mill CoroMill® Plura solid carbide R216.42-02030-AK60AH10F
See technical informationReferences
Sandvik Coromant:R216.42-02030-AK60AH10F
Rubix:286A9268
Manufacturer :5743399
Product details : SANDVIK R216.42-02030-AK60A H10F 5743399
Ball nose end mill CoroMill® Plura solid carbide for profiling
Technical specifications
Attributes
| Diameter | 2 mm |
|---|---|
| Type of tail | cylindrical |
| Tail diameter | 6 mm |
| Number of teeth | 2 |
| Length of cut | 6 mm |
| Total length | 57 mm |
| Centre cut | center cut |
| Cutting material | carbide |
| Coating | uncoated |
| Type | ball nose |
| Angle of helix | 30 ° |
| Machining material | hardened steel (48–63 hrc), steel/stainless steel, and non-ferrous materials (including non-ferrous with silicon content ≤ 9%) |
| Capacity length | 6 mm |
| Cutting angle | 20 ° |
Show UNSPSC/ECL@SS
£ 76.73 excl. VAT
/ Each
£ 92.08 incl. VAT
- Usually arrives within 14 working days
