SANDVIK R216.42-02530-AI25G1610 SC MILLING CM PLURA 2 5743416

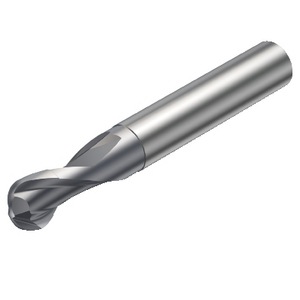

Ball-nose end mill CoroMill® Plura solid carbide R216.42-02530-AI25G1610
See technical informationReferences
Sandvik Coromant:R216.42-02530-AI25G1610
Rubix:317A7800
Manufacturer :5743416
Technical specifications
| Diameter | 2.5 mm |
|---|---|
| Type of tail | cylindrical |
| Tail diameter | 6 mm |
Product details : SANDVIK R216.42-02530-AI25G1610 SC MILLING CM PLURA 2 5743416
Ball-nose end mill CoroMill® Plura solid carbide for profiling
Technical specifications
Attributes
| Diameter | 2.5 mm |
|---|---|
| Type of tail | cylindrical |
| Tail diameter | 6 mm |
| Number of teeth | 2 |
| Length of cut | 2.5 mm |
| Total length | 57 mm |
| Centre cut | center cut |
| Cutting material | carbide |
| Coating | pvd tialn |
| Type | ball nose end mill |
| Angle of helix | 30 ° |
| Machining material | hardened steel (48–63 hrc), steel and stainless steel (hrc ≤ 63 or hrc ≤ 48), non-ferrous materials, and non-ferrous materials with silicon content ≤ 9% |
| Capacity length | 2.5 mm |
| Cutting angle | 3 ° |
Show UNSPSC/ECL@SS
£ 91.40 excl. VAT
/ Each
£ 109.68 incl. VAT
- Usually arrives within 14 working days
