SANDVIK R216.42-03030-AK04G1610 SC MILLING CM PLURA 2 5743519

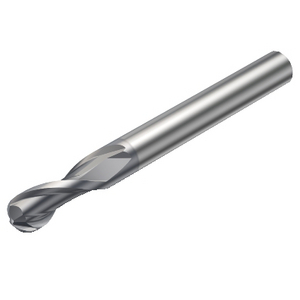

Ball nose end mill CoroMill® Plura solid carbide R216.42-03030-AK04G1610
See technical informationReferences
Sandvik Coromant:R216.42-03030-AK04G1610
Rubix:317A6086
Manufacturer :5743519
Product details : SANDVIK R216.42-03030-AK04G1610 SC MILLING CM PLURA 2 5743519
Ball nose end mill CoroMill® Plura solid carbide for profiling

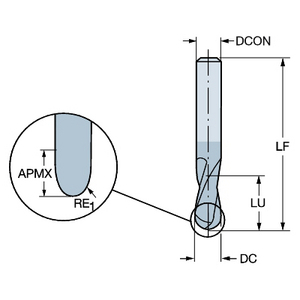

Technical specifications
Attributes
| Diameter | 3 mm |
|---|---|
| Type of tail | cylindrical |
| Tail diameter | 6 mm |
| Number of teeth | 2 |
| Length of cut | 4 mm |
| Total length | 57 mm |
| Centre cut | center cut |
| Cutting material | carbide |
| Coating | pvd tialn |
| Type | coromill® plura solid carbide ball nose end mill for profiling |
| Angle of helix | 30 ° |
| Machining material | hardened steel (48 - 63 hrc), steel and stainless steel (up to 63 hrc / up to 48 hrc depending on material), and non-ferrous materials (silicon content ≤ 9%) |
| Capacity length | 4 mm |
| Cutting angle | 3 ° |
Show UNSPSC/ECL@SS
£ 105.42 excl. VAT
/ Each
£ 126.50 incl. VAT
- Usually arrives within 14 working days
