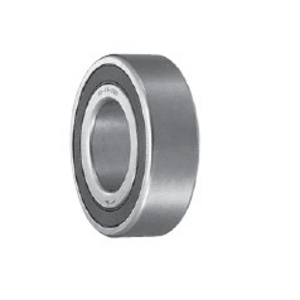

TSUBAKI 5015017020 BB17-2GD CAM CLUTCH
BB15-2GD CAM CLUTCH
References
tsubaki:BB17-2GD
rubix:267A0351
manufacturer :5015017020
ean:0096223526779
Technical specifications
| Inner diameter | 17 mm |
|---|---|
| Outer diameter | 40 mm |
| Width | 17 mm |
Product details : TSUBAKI 5015017020 BB17-2GD CAM CLUTCH
Tsubaki BB Series clutches have 62** ball bearing characteristics and dimensions. This provides easy handling and installation. Ideal for general applicationsin the light duty industry.
Technical specifications
Attributes
| Logistic Weight | 120 g |
|---|---|
| Inner diameter | 17 mm |
| Outer diameter | 40 mm |
| Width | 17 mm |
| Series | BB |
| Weight | 0.12 kg |
| Reference speed | 3500 rpm |
| Total bearing width | 17 mm |
| Auth. torque | 43 N.m |
| Standard | DIN 6885. 3 |
| Basic static load, radial - C0r | 3700 N |
| Basic dynamic load, radial - Cr | 7000 N |
Show UNSPSC/ECL@SS
£ 49.91 excl. VAT
/ Each
£ 59.89 incl. VAT
Usually arrives within 14 working days
