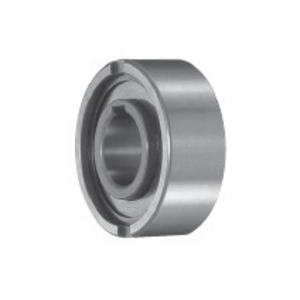

TSUBAKI 5003000300 TFS-30 CAM CLUTCH

TFS-45 CAM CLUTCH

See technical informationSee documents

References

Tsubaki:TFS30
Rubix:267A0298
Manufacturer :5003000300
EAN:8718472212358
TSUBAKI FREEWHEEL CLUTCH TFS 30
TSUBAKI FREEWHEEL CLUTCH TFS 30
TSUBAKI FREEWHEEL CLUTCH TFS 30

Technical specifications

Inner diameter30 mm
Outer diameter72 mm
Width27 mm
See all Specifications

Documents

Product details : TSUBAKI 5003000300 TFS-30 CAM CLUTCH

Tsubaki TFS Series clutches are designed for press fit installation. Outside dimensions are the same as 63** ball bearings. TFS Clutches have two vertical key ways on the outer races. The usage of bearing support is compulsory.

Technical specifications

Attributes
Logistic Weight530 g
Inner diameter30 mm
Outer diameter72 mm
Width27 mm
Seriestfs
Weight0.53 kg
Reference speed1600 rpm
Total bearing width27 mm
Auth. torque200 N.m
StandardDIN 6885. 3
£ 179.04 excl. VAT
/ Each
£ 214.85 incl. VAT
  • Usually arrives within 14 working days
