FENNER BOLT ON HUB FOR TAPER LOCK BUSH SIZE 2012 CAST IRON

FENNER BOLT ON HUB FOR TAPER LOCK BUSH SIZE 2012 CAST IRON

Bolt-on hub

See technical information
References
Fenner:BF20-FEN
Rubix:405A9630
Manufacturer :017K0010
brand logo
Technical specifications
Number of holes6
See all Specifications

Product details : FENNER BOLT ON HUB FOR TAPER LOCK BUSH SIZE 2012 CAST IRON

Fenner Taper Lock® Bolt-on Hubs are designed for use with the universally accepted Taper Lock® bush. They provide a convenient means of securing fand rotors, impellers, agitators and other devises which must be fastened firmly to shafts.

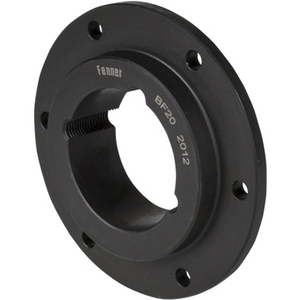

Bolt-on hub BF20 (2012)

Technical specifications

Attributes
Number of holes6
Diameter of fixation holes8.5 mm
Taper bush2012
Outer diameter145 mm
Materialcast iron
Stepped contact point diameter99 mm
Pitch circle diameter125 mm
Show UNSPSC/ECL@SS
£ 40.92 excl. VAT
/ Each
£ 49.10 incl. VAT
  • Delivery usually within ( 2 ) days
