TSUBAKI 84101000000-M CHAIN TO DWG. CR110.1227-E MTR

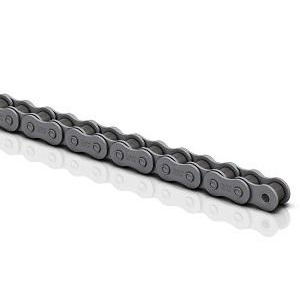

BS Lambda Neptune Chain
References
tsubaki:RS10B 1 N.E.P.
rubix:267A4215
manufacturer :4101000000
ean:8718472788914
Technical specifications
| Chain pitch | 15.875 mm |
|---|---|
| Profile | simplex (1) |
| Chain | 10b-1 |
Product details : TSUBAKI 84101000000-M CHAIN TO DWG. CR110.1227-E MTR
BS Lambda Neptune™ Chain is a Tsubaki BS Lambda chain that has undergone a special surface treatment. The link plates have a special two stage layer applied in order to provide the maximum protection from the operating or environmental conditions. This chain is suitable for use in applications that are subject to akaline cleaning and environments exposed to seawater, acid-rain and other adverse weather conditions. This chain does not contain any chemically hazardous substances such as Hexavalent Chromium, Lead, Cadmium and Mercury as regulated by RoHS.
Strengths
•RF06B-NEP chain has flat-shaped link plates
Connecting links are clip type
Double stake riveting is applied to all other sizes single-strand chain
When a single pitch offset link is used, calculate a 35% reduction of the fatigue strength
Connecting links are clip type
Double stake riveting is applied to all other sizes single-strand chain
When a single pitch offset link is used, calculate a 35% reduction of the fatigue strength
Technical specifications
Attributes
| Chain pitch | 15.875 mm |
|---|---|
| Profile | simplex (1) |
| Chain | 10b-1 |
| Roller diameter | 10.16 mm |
| Inner width min. | 9.65 mm |
| Chain length | 30500 m |
| Pin length | 21.1 mm |
| Chain pin diameter | 5.08 mm |
| Weight | 0.924 kg |
| Plate type | round |
| Plate height | 14.7 mm |
| Plate thickness | 1.5 mm |
| Tensile strength min. | 25.3 kN |
Show UNSPSC/ECL@SS
£ 94.45 excl. VAT
/ Each
£ 113.34 incl. VAT
Usually arrives within 14 working days
