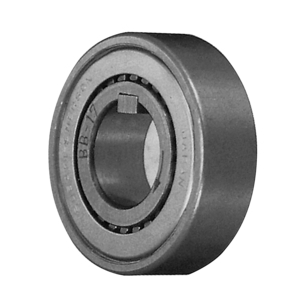

TSUBAKI 5014001710 BB17-1K-K CAM CLUTCH WITH KEYWAY

Cam Clutch BB

See technical informationSee documents

References

Tsubaki:BB17-1K-K
Rubix:267A0339
Manufacturer :5014001710
EAN:0096223526816
TSUBAKI FREEWHEEL CLUTCH BB 17-1K-K

Technical specifications

Inner diameter17 mm
Outer diameter40 mm
Width12 mm
See all Specifications

Documents

Product details : TSUBAKI 5014001710 BB17-1K-K CAM CLUTCH WITH KEYWAY

Tsubaki BB Series clutches have 62** ball bearing characteristics and dimensions. This provides easy handling and installation. Ideal for general applicationsin the light duty industry.

Technical specifications

Attributes
Logistic Weight103 g
Inner diameter17 mm
Outer diameter40 mm
Width12 mm
Seriesbb
Weight0.103 kg
Reference speed3500 rpm
Total bearing width12 mm
Auth. torque43 N.m
StandardDIN 6885. 3
Basic static load, radial - C0r3700 N
Basic dynamic load, radial - Cr7000 N
£ 44.81 excl. VAT
/ Each
£ 53.77 incl. VAT
  • Usually arrives within 14 working days
