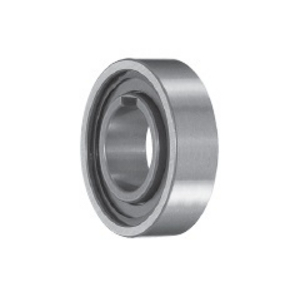

TSUBAKI 5002000400 TSS 40 CAM CLUTCH
TSS-20 CAM CLUTCH
References
tsubaki:TSS40
rubix:267A0290
manufacturer :5002000400
ean:8718472212174
Technical specifications
| Inner diameter | 40 mm |
|---|---|
| Outer diameter | 80 mm |
| Width | 18 mm |
Product details : TSUBAKI 5002000400 TSS 40 CAM CLUTCH
Tsubaki TSS Series clutches are designed for press fit installation. Outside dimensions are the same as series 62 ball bearings. This design provides easy handling and installation, ideal for general applications.
Technical specifications
Attributes
| Logistic Weight | 428 g |
|---|---|
| Inner diameter | 40 mm |
| Outer diameter | 80 mm |
| Width | 18 mm |
| Series | TSS |
| Weight | 0.428 kg |
| Reference speed | 1400 rpm |
| Total bearing width | 18 mm |
| Auth. torque | 296 N.m |
| Standard | DIN 6885. 3 |
Show UNSPSC/ECL@SS
£ 171.57 excl. VAT
/ Each
£ 205.88 incl. VAT
Usually arrives within 14 working days
