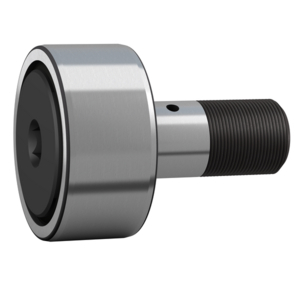

SKF TRACK ROLLER BEARING KRV 32 PPXA
Cam Follower (Stud-type Track Roller)
References
skf:KRV 32 PPXA
rubix:101A2343
manufacturer :137376
ean:7316571588148
Technical specifications
| Inner diameter | 12 mm |
|---|---|
| Width | 40 mm |
| Sealing | open |
Product details : SKF TRACK ROLLER BEARING KRV 32 PPXA
Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. The bearings can be relubricated via the stud.
Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a cylindrical running surface and are supplied sealed and ready-to-mount. The bearings can be relubricated via the stud.
Strengths
- High radial load carrying capacity
- Accommodate axial loads due to skew or tilting
- Long service life
- Easy to mount
- Sealed for increased reliability, with relubrication feature
- Accommodate axial loads due to skew or tilting
- Long service life
- Easy to mount
- Sealed for increased reliability, with relubrication feature
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 40x32x32 mm |
|---|---|
| Logistic Weight | 100 g |
| Inner diameter | 12 mm |
| Width | 40 mm |
| Sealing | open |
| Bearing Clearance | cn |
| Series | krv |
| Material | bearing steel |
| Stat. Load rating | 15.3 N |
| Dyn. Load rating | 9.35 N |
| Outer diameter | 32 mm |
Show UNSPSC/ECL@SS
£ 45.04 excl. VAT
/ Each
£ 54.05 incl. VAT
Usually arrives within 14 working days
