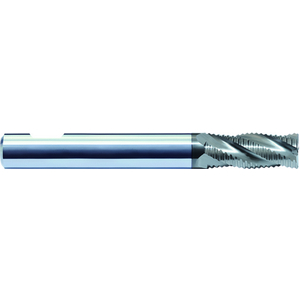

CUTLINE 893371 4MM ROUGHING CARBIDE END MILL 4 FLT CUPP WELDON
CARBIDE END-MILL ROUGHING WELDON
References
giss cutline:893371
rubix:246A3208
ean:3660338458521
Product details : CUTLINE 893371 4MM ROUGHING CARBIDE END MILL 4 FLT CUPP WELDON
Solid carbide endmill - Roughing 4 flutes - 30° helix angle
Weldon shank DIN 6535HB - Centre cut
Roughing for high volume of material removal with higher cutting parameter
CUPP coating - PVD ALCrN based coating for universal milling application - High wear resistance, tenacity & roughness for a wide range of material application
Highly appropriate for steel, stainless steel & cast iron
Can be used in non-ferrous materials, super-alloys & hard-materials
Low risk of tool breakage even with high cutting forces thanks to waved cutting edges
Weldon shank DIN 6535HB - Centre cut
Roughing for high volume of material removal with higher cutting parameter
CUPP coating - PVD ALCrN based coating for universal milling application - High wear resistance, tenacity & roughness for a wide range of material application
Highly appropriate for steel, stainless steel & cast iron
Can be used in non-ferrous materials, super-alloys & hard-materials
Low risk of tool breakage even with high cutting forces thanks to waved cutting edges
Strengths
Big wedge angles for high cutting edge stability
Applications
Coolant highly recommended to ease chips evacuation, reduce tool heat and increase lifetime
Technical specifications
Attributes
| Diameter | 4 mm |
|---|---|
| Total length | 50 mm |
| Length of cut | 11 mm |
| Number of teeth | 4 |
| Tail diameter | 6 mm |
| Angle of helix | 30 ° |
| Type of tail | Cylindrical |
| Machining material | STEEL / STAINLESS STEEL / CAST IRON / NON-FERROUS / HARD |
| Type | ROUGHING |
| Coating | CUPP - MULTI MATERIA |
| Body material | Carbide |
| Centre cut | YES |
Show UNSPSC/ECL@SS
£ 19.69 excl. VAT
/ Each
£ 23.63 incl. VAT
In stock: Next day delivery
