FESTO 531641 COUPLING SOCKET KD4-N-9
Coupling Socket
References
festo:KD4-N-9
rubix:122A7820
manufacturer :531641
ean:4052568047658
Technical specifications
| Connection 1 | 9 mm |
|---|---|
| Material | Nickel-Plated Brass |
Product details : FESTO 531641 COUPLING SOCKET KD4-N-9

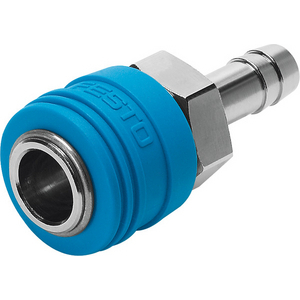

Quick coupling socket KD4-N-9 Self-closing Nominal size=7,4 mm, Operating pressure complete temperature range=-0,95 - 12 bar, Standard nominal flow rate=1008 l/min, Operating medium=Compressed Air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 65x30x30 mm |
|---|---|
| Logistic Weight | 57,08 g |
| Connection 1 | 9 mm |
| Material | Nickel-Plated Brass |
| Profile | KD4 |
| Max. temperature | 60 °C |
| Min. temperature | -10 °C |
Show UNSPSC/ECL@SS
£ 15.29 excl. VAT
/ Each
£ 18.35 incl. VAT
Delivery usually within ( 6 ) days
