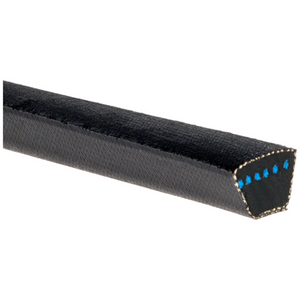

GATES V BELT A SECTION ENVELOPE A24E 13X610LI A640 LD
Delta Classic A
References
gates:A24 13x610Li A640 Ld DELTA CLASSIC
rubix:80178475
manufacturer :9621-60240
ean:5414465288340
Technical specifications
| Profile | A/13 |
|---|---|
| Belt designation | A24 |
| Interior length | 610 mm |
Product details : GATES V BELT A SECTION ENVELOPE A24E 13X610LI A640 LD
The wrapped classical section Hi-Power® V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power® belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.
Strengths
Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear
The vulcanized Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads
The Flex Weave oil and heat resistant cover protects the belt core from the toughest environments
The vulcanized Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads
The Flex Weave oil and heat resistant cover protects the belt core from the toughest environments
Applications
Industrial Applications, Including V-Flat Drives
Technical specifications
Attributes
| Profile | A/13 |
|---|---|
| Belt designation | A24 |
| Interior length | 610 mm |
| Upper width | 13 mm |
| Height | 8 mm |
| Pitch length | 640 mm |
| Outer length | 666 mm |
| Material | SBR |
Show UNSPSC/ECL@SS
£ 3.21 excl. VAT
/ Each
£ 3.85 incl. VAT
Usually arrives within 14 working days
