DORMER S5238.0XR2.0 6706745

DORMER S5238.0XR2.0 6706745

Finger mills S523

See technical information
References
Dormer:S5238.0XR2.0
Rubix:376A3856
EAN:7320760682944
End Mill 8.0XR2.0
End Mill 8.0XR2.0
End Mill 8.0XR2.0
Technical specifications
Diameter8 mm
Type of tailha
Tail diameter8 mm
See all Specifications

Product details : DORMER S5238.0XR2.0 6706745

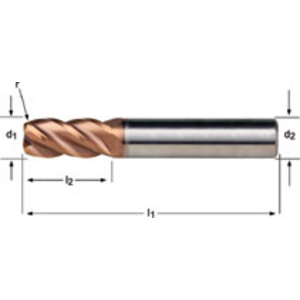

Solid carbide 4-flute corner radius end mill with short cutting-edge and overhang length. DIN 6335 HA cylindrical shank. 40° helix and -6° rake angle. TiSiN coated for hardened steel >49 HRC.

Applications

• Hardened alloy steel (49 - 55 HRC >1620 N/mm²)
• Hardened alloy steel (55 - 63 HRC > 1980 N/mm²)

Technical specifications

Attributes
Diameter8 mm
Type of tailha
Tail diameter8 mm
Number of teeth4
Length of cut20 mm
Total length64 mm
Cutting materialcarbide
Coatingtisin
Machining materialhardened steel
Show UNSPSC/ECL@SS
£ 74.75 excl. VAT
/ Each
£ 89.70 incl. VAT
  • Usually arrives within 14 working days
