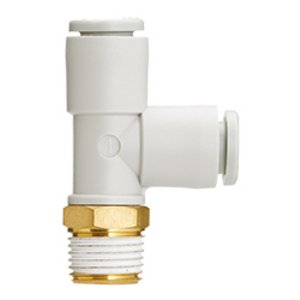

SMC KQ2Y08-01NS ONE-TOUCH FITTING
Fittings
References
smc:KQ2Y08-01NS
rubix:393A7211
Technical specifications
| Connection 1 | 8 |
|---|---|
| Connection 2 | R1/8 |
Product details : SMC KQ2Y08-01NS ONE-TOUCH FITTING
One-touch fitting, a general purpose PBT material
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Strengths
Accepts FEP, PFA, nylon, soft nylon, and polyurethane tubes
Fluid: air, water
Release collar allows easy removal of tubing without causing damage to the tube
This product is not intended for use in potable water systems
Fluid: air, water
Release collar allows easy removal of tubing without causing damage to the tube
This product is not intended for use in potable water systems
Technical specifications
Attributes
| Connection 1 | 8 |
|---|---|
| Connection 2 | R1/8 |
| Length | 25 mm |
| Type of threading | R |
| Max. temperature | 60 °C |
| Min. temperature | -5 °C |
| Material | C3604;PBT;PP |
Show UNSPSC/ECL@SS
£ 4.43 excl. VAT
/ Each
£ 5.32 incl. VAT
Usually arrives within 14 working days
