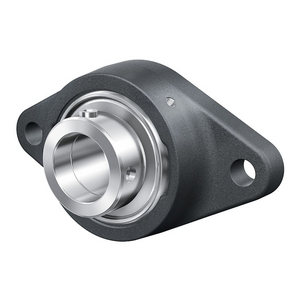

INA HOUSED BEARING UNIT RCJY55-XL


Flanged housing unit

References
ina:RCJY55-XL
rubix:100A2893
manufacturer :0009475980000
ean:4012802802870
brand logo
brand logo
Technical specifications
Inner diameter55 mm
Width43.5 mm
Fixation centre-to-centre distance130 mm
See all Specifications

Product details : INA HOUSED BEARING UNIT RCJY55-XL


INA housing units are available as plummer block, flange bearing and clamping housing units in many different designs. The units are ready for installation and consist of INA cast iron or INA sheet steel housings in which INA radial insert ball bearings are integrated. In order to ensure the function and safety in all operating conditions, the bearing and housing are matched to one another.

Technical specifications


Attributes
Inner diameter55 mm
Width43.5 mm
Fixation centre-to-centre distance130 mm
Materialgray cast iron
Length162 mm
Seriesrcjy..-xl
Total bearing width64.4 mm
Basic static load, radial - C0r29000 N
Basic dynamic load, radial - Cr46000 N
Show UNSPSC/ECL@SS
£ 81.82 excl. VAT
/ Each
£ 98.18 incl. VAT
  • Usually arrives within 14 working days
