SKF SPHERICAL ROLLER BRG 24160 CC/W33
Spherical roller bearing SKF
References
skf:24160 CC/W33
rubix:105A1663
manufacturer :36823
ean:7316577119797
Technical specifications
| Inner diameter | 300 mm |
|---|---|
| Outer diameter | 500 mm |
| Width | 200 mm |
Product details : SKF SPHERICAL ROLLER BRG 24160 CC/W33

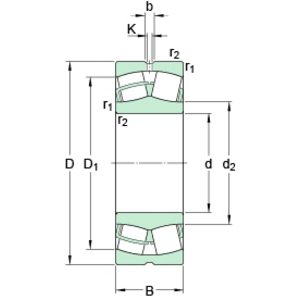

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 200x500x500 mm |
|---|---|
| Logistic Weight | 159700 g |
| Inner diameter | 300 mm |
| Outer diameter | 500 mm |
| Width | 200 mm |
| Bearing Clearance | CN |
| Series | 241C |
| Cage | Steel |
| Reference speed | 560 rpm |
| Limit speed | 800 rpm |
| Basic static load, radial - C0r | 6300 N |
| Basic dynamic load, radial - Cr | 3876 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 7,039.89 excl. VAT
/ Each
£ 8,447.87 incl. VAT
Usually arrives within 14 working days
