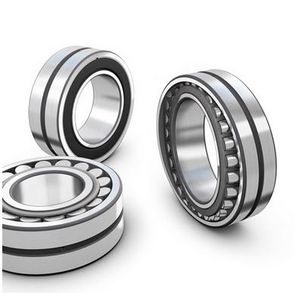

SKF SPHERICAL ROLLER BEARING 23076CCK/W33
Spherical roller bearing SKF
References
skf:23076 CCK/W33
rubix:104A8405
manufacturer :35822
ean:7316576655913
Technical specifications
| Inner diameter | 380 mm |
|---|---|
| Outer diameter | 560 mm |
| Width | 135 mm |
Product details : SKF SPHERICAL ROLLER BEARING 23076CCK/W33
Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 135x560x560 mm |
|---|---|
| Logistic Weight | 107800 g |
| Inner diameter | 380 mm |
| Outer diameter | 560 mm |
| Width | 135 mm |
| Bearing Clearance | CN |
| Series | 230C |
| Reference speed | 900 rpm |
| Limit speed | 1200 rpm |
| Basic static load, radial - C0r | 5000000 N |
| Basic dynamic load, radial - Cr | 2480000 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 4,323.78 excl. VAT
/ Each
£ 5,188.54 incl. VAT
Usually arrives within 14 working days
