SKF SPHERICAL ROLLER BEARING 24156CC/W33
Spherical roller bearing SKF
References
skf:24156 CC/W33
rubix:105A3054
manufacturer :36813
ean:7316577119773
Technical specifications
| Inner diameter | 280 mm |
|---|---|
| Outer diameter | 460 mm |
| Width | 180 mm |
Product details : SKF SPHERICAL ROLLER BEARING 24156CC/W33

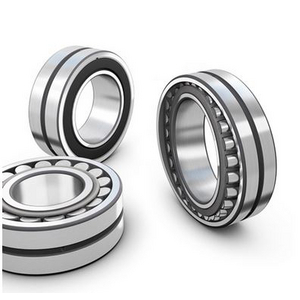

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 180x460x460 mm |
|---|---|
| Logistic Weight | 118200 g |
| Inner diameter | 280 mm |
| Outer diameter | 460 mm |
| Width | 180 mm |
| Bearing Clearance | CN |
| Series | 241C |
| Reference speed | 630 rpm |
| Limit speed | 900 rpm |
| Basic static load, radial - C0r | 5100000 N |
| Basic dynamic load, radial - Cr | 2670000 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 5,013.62 excl. VAT
/ Each
£ 6,016.34 incl. VAT
Usually arrives within 14 working days
