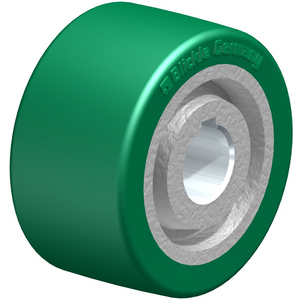

BLICKLE DRIVE WHEEL BLICKLE-GSTN75/20H7
Heavy duty drive wheel, with hub keyway, with Blickle Softhane® polyurethane tread, with cast iron wheel centre
References
blickle:GSTN 75/20H7
rubix:155A1195
manufacturer :754408
ean:4047526093259
Technical specifications
| Load capacity | 200 kg |
|---|---|
| Wheel diameter | 75 mm |
| Wheel width | 40 mm |
Product details : BLICKLE DRIVE WHEEL BLICKLE-GSTN75/20H7
Tread:
- high-quality polyurethane elastomer Blickle Softhane®, hardness 75 Shore A
- extra-thick elastic tread for excellent operational comfort
- very good floor preservation, low-noise operation
- low rolling resistance
- high abrasion resistance
- high cut and tear propagation resistance
- colour green, non-marking, non-staining
- excellent chemical connection with the wheel centre
- rugged grey cast iron
- axle bore and hub keyway in accordance with DIN 6885
- lacquered, colour silver
- high chemical resistance to many aggressive substances
- operating temperature: -30 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
Technical specifications
Attributes
| Logistic Weight | 682 g |
|---|---|
| Load capacity | 200 kg |
| Wheel diameter | 75 mm |
| Wheel width | 40 mm |
| Wheel housing/rim material | Cast Iron |
| Running sole/tire material | Polyurethane |
| Running sole / tire colour | Green |
| Min. temperature | -30 °C |
| Max. temperature | 70 °C |
| 40 mm |
Show UNSPSC/ECL@SS
£ 55.49 excl. VAT
/ Each
£ 66.59 incl. VAT
Usually arrives within 14 working days
