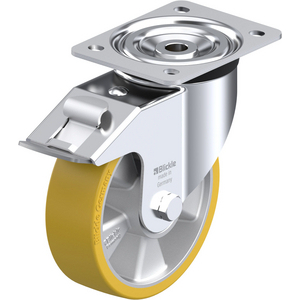

BLICKLE-L-ALTH 160K-FI PRESSED STEEL SWIVEL CASTOR L-ALTH
Pressed steel swivel castor, heavy duty design, with top plate fitting Wheel, with thermoplastic polyurethane tread, with heavy duty nylon wheel centre
References
blickle:L-ALTH 160K-FI
rubix:201A4947
manufacturer :282582
ean:4047526282585
Technical specifications
| Load capacity | 400 kg |
|---|---|
| Wheel diameter | 160 mm |
| Wheel width | 50 mm |
Product details : BLICKLE-L-ALTH 160K-FI PRESSED STEEL SWIVEL CASTOR L-ALTH
Bracket: LH series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due to four specially-shaped, hardened bearing seats
Wheel: POTH series
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour natural white
- very high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
Technical specifications
Attributes
| Logistic Weight | 3090 g |
|---|---|
| Load capacity | 400 kg |
| Wheel diameter | 160 mm |
| Wheel width | 50 mm |
| Wheel housing/rim material | Aluminium |
| Running sole/tire material | Polyurethane |
| Type of bearing | Ball bearing |
| Running sole / tire colour | Brown |
| Shore A Hardness | 92 Shore |
| Min. temperature | -20 °C |
| Max. temperature | 70 °C |
| 195 mm | |
| 50 mm |
Show UNSPSC/ECL@SS
£ 108.94 excl. VAT
/ Each
£ 130.73 incl. VAT
Usually arrives within 14 working days
