INA RFE60 RFE60-XL
Housing Unit
References
ina:RFE60-XL
rubix:102A7148
manufacturer :0008278350000
ean:4012802793536
Technical specifications
| Inner diameter | 60 mm |
|---|---|
| Width | 77.9 mm |
| Fixation centre-to-centre distance | 165 mm |
Product details : INA RFE60 RFE60-XL

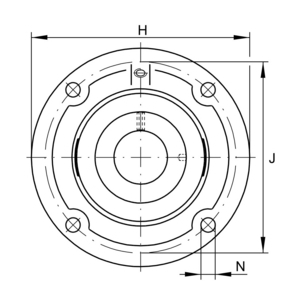

four-bolt flanged housing units, cast iron, centring spigot, eccentric locking collar, R seals
Technical specifications
Attributes
| Inner diameter | 60 mm |
|---|---|
| Width | 77.9 mm |
| Fixation centre-to-centre distance | 165 mm |
| Material | Cast Iron |
| Series | RFE |
| Total bearing width | 77.9 mm |
| Diameter of fixation holes | 14 mm |
| Number of holes | 4 |
| Basic static load, radial - C0r | 36000 N |
| Basic dynamic load, radial - Cr | 56000 N |
| Outer diameter | 195 mm |
Show UNSPSC/ECL@SS
£ 135.60 excl. VAT
/ Each
£ 162.72 incl. VAT
Usually arrives within 14 working days
