Insert bearing with set screw SNR SUC206FG1, Outer diameter: 62 mm | Inner diameter: 30 mm | Width: 19 mm

Insert Bearings

See technical informationSee documents

References

SNR:SUC206FG1
Rubix:262A4967
Manufacturer :SUC 206 FG1
EAN:3413521907913
brand logo
brand logo
brand logo
brand logo
brand logo

Technical specifications

Inner diameter30 mm
Outer diameter62 mm
Width19 mm
See all Specifications

Documents

Product details : SNR SUC206FG1 INSERT BEARING

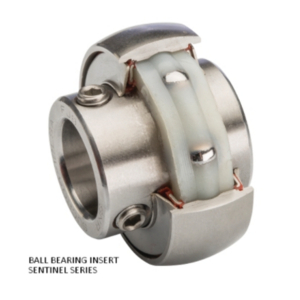

SENTINEL Series: Stainless steel insert ball bearing, spherical outer ring with anti-rotation ball, fixing by socket set screws, seals with slingers, "Full Pack" LUBSOLID® food solid lubrication.
brand logo
brand logo

Technical specifications

Attributes
Inner diameter30 mm
Outer diameter62 mm
Width19 mm
Bearing Clearancecn
Sealingone rubber seal
Seriessuc2
Materialstainless steel
Cagestainless steel
Limit speed0.5 rpm
Total bearing width38.1 mm
Basic static load, radial - C0r11200 N
Basic dynamic load, radial - Cr19400 N
Weight0.29 kg
£ 74.85 excl. VAT
/ Each
£ 89.82 incl. VAT
  • Delivery usually within ( 3 ) days
