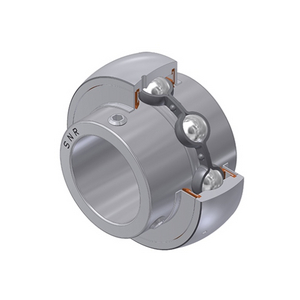

SNR SUC204 INSERT BEARING

Insert bearing with set screw SNR SUC204, Outer diameter: 47 mm | Inner diameter: 20 mm | Width: 31 mm

SNR - Bearing Unit - SUC.201

See technical informationSee documents
References
SNR:SUC204
Rubix:205A8511
Manufacturer :SUC.204
EAN:3413529500031
brand logo
brand logo
brand logo
Technical specifications
Inner diameter20 mm
Outer diameter47 mm
Width31 mm
See all Specifications
Documents

Product details : SNR SUC204 INSERT BEARING

stainless steel insert, spherical outer diameter with locking pin, fixing by socket set screw, seal with slinger, food grease

Technical specifications

Attributes
Inner diameter20 mm
Outer diameter47 mm
Width31 mm
Bearing Clearancec3
Sealingtwo rubber seals
Seriessuc200
Materialstainless steel
Cagestainless steel
Reaming20 mm
Limit speed6700 rpm
Lubrication Typegrease
Total bearing width31 mm
Basic static load, radial - C0r6800 N
Basic dynamic load, radial - Cr10100 N
Lubricantfood-grade grease
Weight0.15 kg
Show UNSPSC/ECL@SS
£ 31.96 excl. VAT
/ Each
£ 38.35 incl. VAT
  • Delivery usually within ( 3 ) days
