SMC KQ2UD04-06A FITTING I 4 TUBE I 6 TUBE
KQ2 series push-in fittings
References
smc:KQ2UD04-06A
rubix:81176373
Technical specifications
| Material | C3604, PBT, PP, 303 Stainless Steel (Body);C3604 (Thread Portion), 303 Stainless Steel (Thread Portion) (Stud);304 Stainless Steel (Chuck, Guide);POM (Release Button);NBR (Seal, O-Ring);304 Stainless Steel, NBR (Gasket) |
|---|---|
| Connection 1 | 4 mm |
Product details : SMC KQ2UD04-06A FITTING I 4 TUBE I 6 TUBE
One-touch fitting, a general purpose PBT material
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.

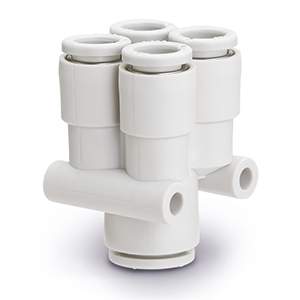

•Different diameter double union "Y".
•Applicable Tubing O.D.(A): ø4, ø6.
•Applicable Tubing O.D.(B): ø6, ø8.
Applicable Tube O.D. (A): ø 4
Applicable Tube O.D. (B): ø 6
•Applicable Tubing O.D.(A): ø4, ø6.
•Applicable Tubing O.D.(B): ø6, ø8.
Applicable Tube O.D. (A): ø 4
Applicable Tube O.D. (B): ø 6
Technical specifications
Attributes
| Logistic Weight | 9 g |
|---|---|
| Material | C3604, PBT, PP, 303 Stainless Steel (Body);C3604 (Thread Portion), 303 Stainless Steel (Thread Portion) (Stud);304 Stainless Steel (Chuck, Guide);POM (Release Button);NBR (Seal, O-Ring);304 Stainless Steel, NBR (Gasket) |
| Connection 1 | 4 mm |
| Profile | KQ2 |
| Connection 2 | 6 mm |
| Min. temperature | -5 °C |
| Max. temperature | 60 °C |
Show UNSPSC/ECL@SS
£ 8.78 excl. VAT
/ Each
£ 10.54 incl. VAT
Delivery usually within ( 4 ) days
