LEGRIS LF3600 BRASS FITTING 3609 10 17

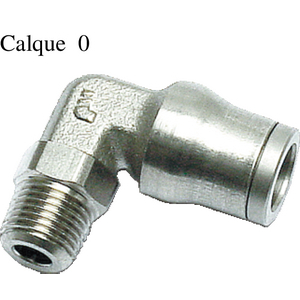

Legris Elbow Male Stud BSP Taper 3609
See technical informationSee documentsReferences
Parker:3609 10 17
Rubix:115A8286
Manufacturer :3609 10 17
EAN:0820099279107
Documents
Product details : LEGRIS LF3600 BRASS FITTING 3609 10 17
Connection of tubing at a 90° angle to a threaded port with reduced height dimensions
- individual unit quality control and dating in order to guarantee quality and traceability,
- RoHS.
- individual unit quality control and dating in order to guarantee quality and traceability,
- RoHS.
Strengths
• High Performance
• Resistant up to +150°C at 30 bar
• Excellent mechanical performance
• Long threads to resist shock and vibration
• Excellent abrasion and corrosion resistance due to high phosphorus chemical nickel plating
• Full flow, minimal pressure drop• Versatility
• Materials conform to FDA standards
• Spring collet gripping system suitable for both metal (grooved) and polymer tubing
• Excellent resistance to high pressure and vacuum
• Excellent chemical compatibility
• More than 250 part numbers
• One fitting for numerous applications: stock optimisation
• Manual connection and disconnection
• Compact and ergonomic• Reliability
• High performance brass for increased lifespan
• 100% leak-tested in production
• Date coding to guarantee quality and traceability
• Resistant up to +150°C at 30 bar
• Excellent mechanical performance
• Long threads to resist shock and vibration
• Excellent abrasion and corrosion resistance due to high phosphorus chemical nickel plating
• Full flow, minimal pressure drop• Versatility
• Materials conform to FDA standards
• Spring collet gripping system suitable for both metal (grooved) and polymer tubing
• Excellent resistance to high pressure and vacuum
• Excellent chemical compatibility
• More than 250 part numbers
• One fitting for numerous applications: stock optimisation
• Manual connection and disconnection
• Compact and ergonomic• Reliability
• High performance brass for increased lifespan
• 100% leak-tested in production
• Date coding to guarantee quality and traceability
Applications
• Food Process
• Coffee Machines
• In-Plant Automotive
• Medical Equipment
• Printing
• Misting
• Welding Robots
Technical specifications
Attributes
| Logistic Weight | 43 g |
|---|---|
| Package weight | 465 g |
| Type of threading | bspt |
| Connection 1 | r 3/8 |
| Connection 2 | 10 |
| Material | nickel plated brass |
| Max. temperature | 150 °C |
| Min. temperature | -20 °C |
| 60 mm | |
| 90 mm |
Show UNSPSC/ECL@SS
£ 9.59 excl. VAT
/ Each
£ 11.51 incl. VAT
- Usually arrives within 14 working days
