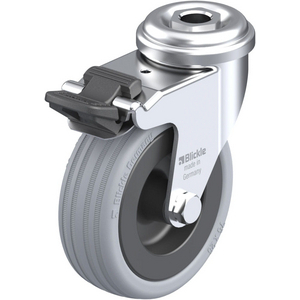

BLICKLE-LRA-VPA75G-FI LIGHT DUTY SWIVEL CASTOR WITH BOLT HOLE & BRAKE
Light duty swivel castor, with bolt hole fitting, with brake system 'stop-fix' Wheel, with solid rubber tyres, with synthetic rim
References
blickle:LRA-VPA 75G-FI
rubix:203A7757
manufacturer :224485
ean:4047526224486
Technical specifications
| Load capacity | 60 kg |
|---|---|
| Wheel diameter | 75 mm |
| Wheel width | 25 mm |
Product details : BLICKLE-LRA-VPA75G-FI LIGHT DUTY SWIVEL CASTOR WITH BOLT HOLE & BRAKE
Bracket: LRA series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: VPA series
- tyre: high-quality solid rubber, hardness 80 Shore A, colour grey, non-marking, non-staining
- rim: high-quality nylon 6 or polypropylene in the electrically conductive version "-EL", impact resistant, colour black
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
Technical specifications
Attributes
| Logistic Weight | 274 g |
|---|---|
| Load capacity | 60 kg |
| Wheel diameter | 75 mm |
| Wheel width | 25 mm |
| Wheel housing/rim material | Polyamide |
| Running sole/tire material | Rubber |
| Type of bearing | Plain bore |
| Running sole / tire colour | Grey |
| Shore A Hardness | 80 Shore |
| Min. temperature | -20 °C |
| Max. temperature | 60 °C |
| 98 mm | |
| 25 mm |
Show UNSPSC/ECL@SS
£ 10.18 excl. VAT
/ Each
£ 12.22 incl. VAT
Usually arrives within 14 working days
