DORMER E261M6 TAP M6 X 1.00 MM 6554513

Machine taps E261

See technical information

References

Dormer:E261M6
Rubix:270A1401
EAN:7320760674567

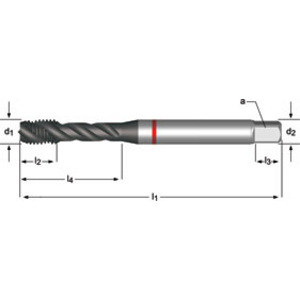

Machine tap M6 DIN 371
Machine tap M6 DIN 371
Machine tap M6 DIN 371

Technical specifications

Threadingm6
Threading diameter6 mm
Typemetric blind bores
See all Specifications

Product details : DORMER E261M6 TAP M6 X 1.00 MM 6554513

HSS-E-PM machine tap for metric threads SHARK red ring TiAlN-Top coated DIN 371 form C 45° spiral flute 2.5xD blind holes for alloy steel <1200 N/mm².

Applications

• Alloy steel (<250 HB <850 N/mm²)
• Alloy steel, hardened and tempered (>250<350 HB >850<1200 N/mm²)

Technical specifications

Attributes
Threadingm6
Threading diameter6 mm
Typemetric blind bores
With cooling sprayno
Direction of threadingright
Drilling diameter5 mm
Tail diameter4.9 mm
Square drive adapter6 mm
Thread depth10 mm
Angle of helix45 °
Coatingtialn top
Total length80 mm
Body materialhss-e / pm
No. of threads per inch25.4
Tolerance6h
Shank typecylindrical shank with square
£ 43.91 excl. VAT
/ Each
£ 52.69 incl. VAT
  • Usually arrives within 14 working days
