DORMER E252M24 TAP M24 X 3.00 MM 5975449

Machine thread-cutters E252

See technical information

References

Dormer:E252M24
Rubix:2557085
EAN:7320760087336

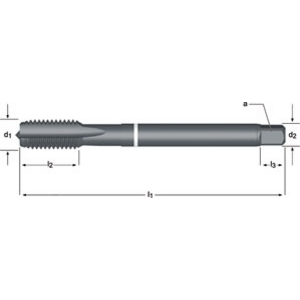

Machine tap M24x3.00mm DIN 371
Machine tap M24x3.00mm DIN 371
Machine tap M24x3.00mm DIN 371

Technical specifications

Threadingm24
Threading diameter24 mm
Typemetric blind bores and through-bores
See all Specifications

Product details : DORMER E252M24 TAP M24 X 3.00 MM 5975449

HSS-E-PM Machine thread-cutter for metric threaded SHARK white ring nitrided DIN 376 shape C straight grooves 2xD blind and continuous holes for cast iron and synthetic materials such as duraplastics.
TARAUD M 24 E252 MAC XP GD DIN 371

Applications

• Cast Iron lamellar (<150 HB>500 N/mm²)
• Cast Iron lamellar (>150<300 HB>500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• Plastic - Duraplastics

Technical specifications

Attributes
Threadingm24
Threading diameter24 mm
Typemetric blind bores and through-bores
With cooling sprayno
Drilling diameter21 mm
Square drive adapter18 mm
Coatingsteam tempered
Total length160 mm
Body materialhss-e
£ 114.16 excl. VAT
/ Each
£ 136.99 incl. VAT
  • Usually arrives within 14 working days
