DORMER E260M4 TAP M4 X 0.70 MM 6554501

Machine thread-cutters E260

See technical information

References

Dormer:E260M4
Rubix:2557103
EAN:7320760674444
Machine tap M4 DIN 371
Machine tap M4 DIN 371
Machine tap M4 DIN 371

Technical specifications

Threadingm4 x 0,70
Threading diameter4 mm
Typemetric blind bores
See all Specifications

Product details : DORMER E260M4 TAP M4 X 0.70 MM 6554501

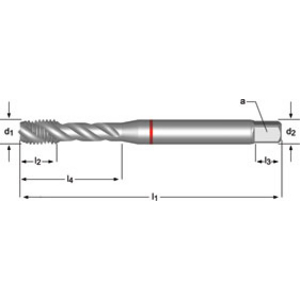

HSS-E Machine thread-cutter for metric thread SHARK red ring uncoated DIN 376 shape C 45° spiralised 2.5xD blind holes for alloyed steel <850 N/mm².

Applications

• Alloyed steel (<250 HB <850 N/mm²)

Technical specifications

Attributes
Threadingm4 x 0,70
Threading diameter4 mm
Typemetric blind bores
With cooling sprayno
Direction of threadingright
Drilling diameter3.3 mm
Tail diameter3.4 mm
Square drive adapter4.5 mm
Thread depth7 mm
Angle of helix45 °
Coatingblank
Total length63 mm
Body materialhss-e / pm
Threadingm4 x 0,70
No. of threads per inch36.29
£ 26.76 excl. VAT
/ Each
£ 32.11 incl. VAT
  • Usually arrives within 14 working days
