SKF HK 1522 NEEDLE ROLLR BEARING
Needle Roller Bearing
References
skf:HK 1522
rubix:229A3672
manufacturer :8639
ean:7316577010346
Technical specifications
| Inner diameter | 15 mm |
|---|---|
| Outer diameter | 21 mm |
| Width | 22 mm |
Product details : SKF HK 1522 NEEDLE ROLLR BEARING

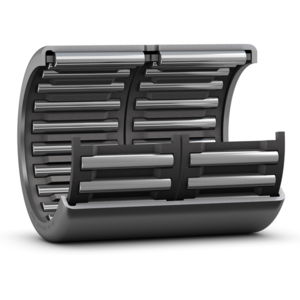

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.
Strengths
- High radial load carrying capacity
- High stiffness
- Very low cross-sectional height
- High stiffness
- Very low cross-sectional height
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 22x21x21 mm |
|---|---|
| Logistic Weight | 20 g |
| Inner diameter | 15 mm |
| Outer diameter | 21 mm |
| Width | 22 mm |
| Bearing Clearance | CN |
| Series | HK |
| Material | Bearing steel |
| Cage | Steel |
| Sealing | Open |
| Reference speed | 15000 rpm |
| Limit speed | 16000 rpm |
| Number of rows | 1 |
| Basic static load, radial - C0r | 20000 N |
| Basic dynamic load, radial - Cr | 13000 N |
Show UNSPSC/ECL@SS
£ 5.51 excl. VAT
/ Each
£ 6.61 incl. VAT
Usually arrives within 14 working days
