KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The specially designed packing provides positive sealing under pressure without the reduced flow common with compression fittings. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing

Strengths

•Accepts nylon and urethane tubes
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Maximum vacuum pressure of 1. 0MPa

Technical specifications

Attributes

Material	C3604, PBT, PP, Stainless Steel 303
Connection 1	10 mm
Profile	KQ2
Connection 2	R 1/2 in
Min. temperature	-5 °C
Max. temperature	60 °C

Show UNSPSC/ECL@SS

£ 11.87 ^{excl. VAT}

/ Each

£ 14.24 ^{incl. VAT}

Delivery usually within ( 17 ) days

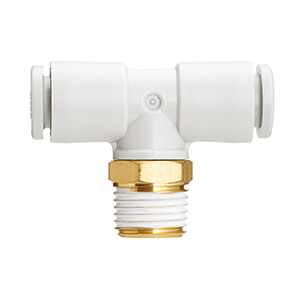

SMC KQ2T10-04NS ONE-TOUCH FITTING

Product details : SMC KQ2T10-04NS ONE-TOUCH FITTING
