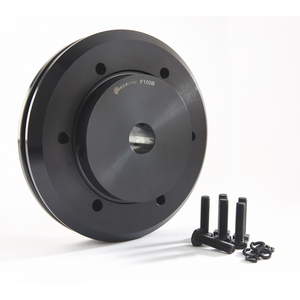

MECALINE F110B Tyre Coupling Hub Pilot bored
Pilot bore tyre coupling Hubs
References
mecaline:893501
rubix:45036007
ean:3660338459603
Technical specifications
| Size | 110 |
|---|
Product details : MECALINE F110B Tyre Coupling Hub Pilot bored
Tyre coupling hub with a pilot bore which can be re-bored and keyed to the desired diameter. Tyre couplings can accommodate simultaneous misalignment in all planes without imposing undue loads on ajacent bearings
110 B pilot bore hub
Strengths
GG25 Cast Iron
Applications
For transferring power through 2 shafts and to compensate mis-alignment
Technical specifications
Attributes
| Size | 110 |
|---|---|
| Material | steel |
| Min. temperature | -15 °C |
| Max. temperature | 70 °C |
| Outer diameter | 233 mm |
| Nominal torque | 712 N.m |
| Max speed | 2300 rpm |
| Angular offset | 4 ° |
| Radial offset | 3 mm |
| Weight | 12.5 kg |
| Type | b - pilot bore |
Show UNSPSC/ECL@SS
£ 88.87 excl. VAT
/ Each
£ 106.64 incl. VAT
In stock: Next day delivery
