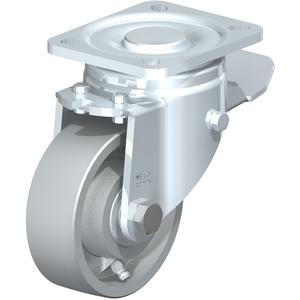

BLICKLE SWIVAL CASTOR CI 100 LH-G100K-1ST
Pressed steel swivel castor, heavy duty design, with top plate fitting, with brake system 'stop-top' Cast iron wheel
References
blickle:LH-G 100K-1-ST
rubix:155A0256
manufacturer :853070
ean:4047526200756
Technical specifications
| Load capacity | 400 kg |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 35 mm |
Product details : BLICKLE SWIVAL CASTOR CI 100 LH-G100K-1ST
Bracket: LH series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due to four specially-shaped, hardened bearing seats
Wheel: G series
- rugged grey cast iron, hardness 180–220 HB, grease nipple, lacquered, colour silver
- chemical resistance to many aggressive substances
- operating temperature: -20 °C to +120 °C
- consider the surface pressure on sensitive floors due to high point loads
- provide adequate lubrication on a regular basis for plain bore version
- to be lubricated according to the application temperature
Technical specifications
Attributes
| Logistic Weight | 1000 g |
|---|---|
| Load capacity | 400 kg |
| Wheel diameter | 100 mm |
| Wheel width | 35 mm |
| Wheel housing/rim material | Cast Iron |
| Running sole/tire material | Cast Iron |
| Min. temperature | -20 °C |
| Max. temperature | 120 °C |
| Type of bearing | Ball bearing |
| Running sole / tire colour | Silver |
| 140 mm | |
| 35 mm |
Show UNSPSC/ECL@SS
£ 92.18 excl. VAT
/ Each
£ 110.62 incl. VAT
Usually arrives within 14 working days
