BLICKLE SWIVELBREAKEDCASTORS LE-PO-100K-FI

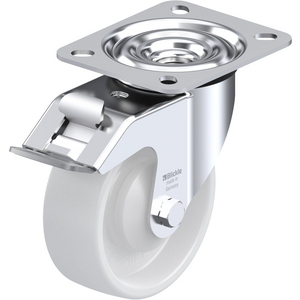

Pressed steel swivel castor, heavy duty design, with top plate fitting, with brake system 'stop-top' Nylon heavy duty wheel
References
blickle:LE-PO 100KA-FI
rubix:156A5726
manufacturer :585463
ean:4047526585464
Technical specifications
| Load capacity | 150 kg |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 37 mm |
Product details : BLICKLE SWIVELBREAKEDCASTORS LE-PO-100K-FI
Bracket: LH series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due to four specially-shaped, hardened bearing seats
Wheel: SPO series
- high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
Technical specifications
Attributes
| Logistic Weight | 737 g |
|---|---|
| Load capacity | 150 kg |
| Wheel diameter | 100 mm |
| Wheel width | 37 mm |
| Wheel housing/rim material | polyamide |
| Running sole/tire material | polyamide |
| Min. temperature | -20 °C |
| Max. temperature | 70 °C |
| Total height | 125 mm |
| Type of bearing | ball bearing (c) |
| Running sole / tire colour | beige |
| Plate width | 85 mm |
| Plate length | 100 mm |
| 125 mm | |
| 37 mm |
Show UNSPSC/ECL@SS
£ 26.80 excl. VAT
/ Each
£ 32.16 incl. VAT
Usually arrives within 14 working days
