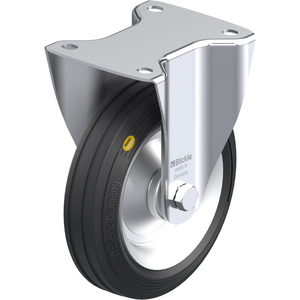

BLICKLE 42663 B-RD 182R PRESSED STEEL FIXED CASTOR, MEDIUM DUTY
Pressed steel swivel castor, with bolt hole Wheel, with standard solid rubber tyre, with synthetic rim
References
blickle:B-RD 182R
rubix:241A0206
manufacturer :42663
ean:4047526042660
Technical specifications
| Load capacity | 300 kg |
|---|---|
| Wheel diameter | 180 mm |
| Wheel width | 50 mm |
Product details : BLICKLE 42663 B-RD 182R PRESSED STEEL FIXED CASTOR, MEDIUM DUTY
Bracket: LER series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: VPP series
- tyre: standard solid rubber, hardness 80 Shore A, colour black
- rim: high-quality polypropylene, impact resistant, colour black
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
Technical specifications
Attributes
| Logistic Weight | 2295 g |
|---|---|
| Load capacity | 300 kg |
| Wheel diameter | 180 mm |
| Wheel width | 50 mm |
| Wheel housing/rim material | Steel |
| Running sole/tire material | Rubber |
| Min. temperature | -25 °C |
| Max. temperature | 80 °C |
| Total height | 215 mm |
| Type of bearing | Roller bearing |
| Running sole / tire colour | Black |
| Shore A Hardness | 65 Shore |
| Plate width | 110 mm |
| Plate length | 140 mm |
| 215 mm | |
| 50 mm |
Show UNSPSC/ECL@SS
£ 48.16 excl. VAT
/ Each
£ 57.79 incl. VAT
Usually arrives within 14 working days
