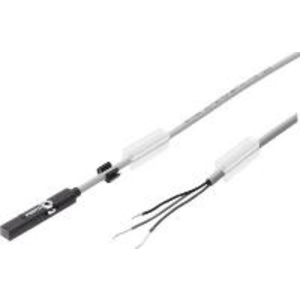

FESTO 543862 PROXIMITY SWITCH SME-8M-DS-24V-K-2,5-OE
Proximity switch SME-8
References
festo:SME-8M-DS-24V-K-2.5-OE
rubix:80976646
ean:4052568091781
Technical specifications
| Type | Proximity Sensor |
|---|---|
| Min. tension | 5 V |
| Max. tension | 30 V |
Product details : FESTO 543862 PROXIMITY SWITCH SME-8M-DS-24V-K-2,5-OE
Magnetic Reed cylinder switch for T-slot, can be pushed in lengthways.
Strengths
Measuring principle: magnetic reed
Variants suitable for use with energy chains and robots
Screw-clamped or clamped in slot, can be inserted into the slot from above or lengthwise
LED switching status indication
Cable length 0.3, 2.5, 5, 7.5, 0.2 ...10 m
Variants suitable for use with energy chains and robots
Screw-clamped or clamped in slot, can be inserted into the slot from above or lengthwise
LED switching status indication
Cable length 0.3, 2.5, 5, 7.5, 0.2 ...10 m
Technical specifications
Attributes
| Type | Proximity Sensor |
|---|---|
| Min. tension | 5 V |
| Max. tension | 30 V |
| Material | PA;High-Alloy Stainless Steel |
| Connection | 3-Wire;Cable |
| Cable length | 2,5 m |
| Min. temperature | -40 °C |
| Max. temperature | 70 °C |
Show UNSPSC/ECL@SS
£ 34.90 excl. VAT
/ Each
£ 41.88 incl. VAT
In stock: Next day delivery
