Standard series
Wide range of variants: wide selection for maximum flexibility in standard applications
PBT and nickel-plated brass
Operating media compressed air, vacuum, water. Water as per the manufacturer's declaration, see www.festo.com/certificates/QS

Technical specifications

Attributes

Logistic Weight	21,2 g
Connection 1	12 mm
Connection 2	10 mm
Length	47.6 mm
Max. temperature	80 °C
Min. temperature	-10 °C
Material	pbt (housing);pom (release ring);nbr (tubing seal);high-alloy stainless steel (tubing clamp component)

Show UNSPSC/ECL@SS

£ 5.37 ^{excl. VAT}

/ Each

£ 6.44 ^{incl. VAT}

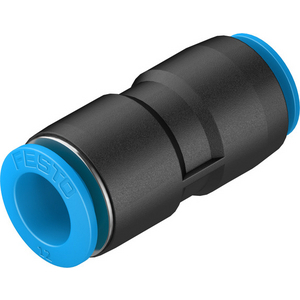

FESTO 153040 PUSH-IN CONNECTOR QS-12-10
