References
Festo:KS2-M5-A
Rubix:123A3116
Manufacturer :531658
EAN:4052568047764
Documents

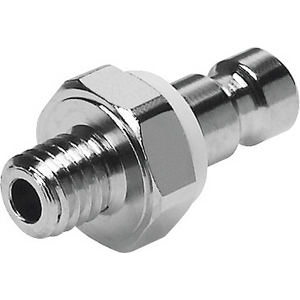

Product details : FESTO 531658 QUICK COUPLING PLUG KS2-M5-A
Quick coupling plug KS2-M5-A For self-closing quick coupling connectors. Nominal size=2,4 mm, Operating pressure complete temperature range=-0,95 - 12 bar, Standard nominal flow rate=126 l/min, Operating medium=Compressed Air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 18x10x10 mm |
|---|---|
| Logistic Weight | 4,6 g |
| Connection 1 | m5 |
| Material | nickel-plated brass |
| Profile | ks2 |
| Max. temperature | 60 °C |
| Weight | 0.005 kg |
| Max. service pressure | 12 bar |
Show UNSPSC/ECL@SS
£ 3.29 excl. VAT
/ Each
£ 3.95 incl. VAT
- Delivery usually within ( 2 ) days
