FESTO 6143 SELF-ALIGNING ROD COUPLER FK-M20X1,5
Quick Coupling
References
festo:FK-M20X1.5
rubix:117A8156
ean:4052568001070
Technical specifications
| Connection 1 | M20 |
|---|---|
| Material | Galvanized steel (bushing, housing, nut); case-hardened steel (ball pin, ball washer) |

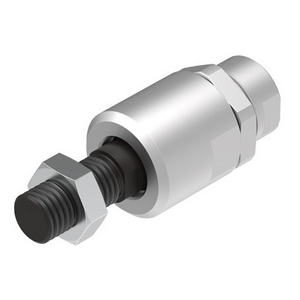

Product details : FESTO 6143 SELF-ALIGNING ROD COUPLER FK-M20X1,5
articulated coupling FK-M20X1,5 for compensating radial and angular deviations, to be mounted on piston rod. Size=M20x1.5, Corrosion resistance class KBK=2 - Medium corrosion effects, Ambient temperature=-40 - 150 °C, Product weight=720 g, Material note=(* copper and PTFE free, * RoHS compliant)
Technical specifications
Attributes
| Connection 1 | M20 |
|---|---|
| Material | Galvanized steel (bushing, housing, nut); case-hardened steel (ball pin, ball washer) |
| Profile | FK |
| Max. temperature | 150 °C |
| Min. temperature | -40 °C |
Show UNSPSC/ECL@SS
£ 78.49 excl. VAT
/ Each
£ 94.19 incl. VAT
In stock: Next day delivery
