References
SMC:AQ340F-06-06
Rubix:107A2053
Manufacturer :AQ340F-06-06
EAN:3618035569699
Technical specifications
| Material | pbt (body) |
|---|---|
| Connection | one-touch (push-in) tube fittings: in/out tube o.d. 6 mm; exhaust port tube o.d. 6 mm (model code -06-06) |
Documents

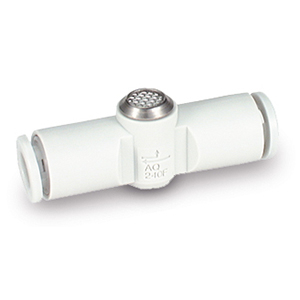

Product details : SMC AQ340F-06-06 CHECK VALVE
Offers high flow capacity in a compact and lightweight body
•Applicable Tubing O.D.: Ø 4 to Ø 6 mm
•Operating Pressure Range: 0.1 to 1 MPa.
Size: 3 (1/8 Basis)
Tube Size: Ø6
Exhaust Port: Ø6
•Operating Pressure Range: 0.1 to 1 MPa.
Size: 3 (1/8 Basis)
Tube Size: Ø6
Exhaust Port: Ø6
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 45x32x12 mm |
|---|---|
| Logistic Weight | 13 g |
| Material | pbt (body) |
| Connection | one-touch (push-in) tube fittings: in/out tube o.d. 6 mm; exhaust port tube o.d. 6 mm (model code -06-06) |
| Max. service pressure | 10 bar |
| Max. temperature | 60 °C |
| Min. temperature | -5 °C |
| Inner diameter | 11.6 mm |
| Type | quick exhaust valve with one-touch (push-in) fittings, in-line type (aq240f/340f series) |
Show UNSPSC/ECL@SS
£ 15.76 excl. VAT
/ Each
£ 18.91 incl. VAT
- Delivery usually within ( 4 ) days
