Solid end mill
Monobloc cutter
DORMER S53110.0 6706482

DORMER S53110.0 6706482

Radius end mills S531

See technical information
References
Dormer:S53110.0
Rubix:376A3936
EAN:7320760680315

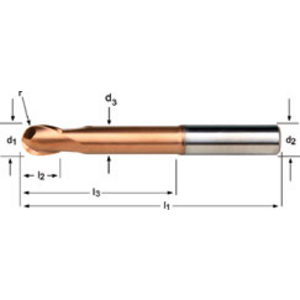

Ball-Nosed End Mill 10.0mm Dormer norm
Ball-Nosed End Mill 10.0mm Dormer norm
Ball-Nosed End Mill 10.0mm Dormer norm
Technical specifications
Diameter10 mm
Type of tailha
Tail diameter10 mm
See all Specifications

Product details : DORMER S53110.0 6706482

VHM 2-flute radius end mill with long overhang. DIN 6335 HA cylindrical shank. 30° helix and -10° rake angle. TiSiN coated for hardened steel >49 HRC.

Applications

• Alloy steel hardened (49 - 55 HRC >1620 N/mm²)
• Alloy steel hardened (55 - 63 HRC > 1980 N/mm²)

Technical specifications

Attributes
Diameter10 mm
Type of tailha
Tail diameter10 mm
Number of teeth2
Length of cut14 mm
Total length75 mm
Cutting materialcarbide
Coatingtisin
Machining materialhardened steel
Show UNSPSC/ECL@SS
£ 102.35 excl. VAT
/ Each
£ 122.82 incl. VAT
  • Usually arrives within 14 working days
