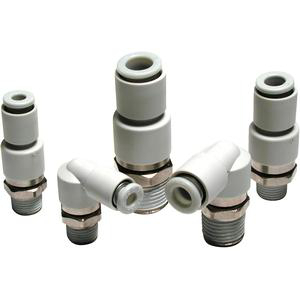

Rotary one-touch fitting series KX comes with double ball race bearing for high speed applications. KX series comes in 5 tube sizes ranging from 4 to 12mm. One touch collet includes anti tube rotation mechanism. KX is suitable for pressure or vacuum applications.

Model: L (Male Elbow)
Applicable Tube OD: Ø6
Port Size: M5 (M5X0.8)
Sealant: w/o Sealant

Technical specifications

Attributes

Logistic Weight	18 g
Connection 1	M5
Connection 2	12,8 mm
Length	32 mm
Type of threading	M
Max. temperature	60 °C
Min. temperature	-5 °C
Material	PBT (Body);NBR (O-Ring, Scraper, Gasket);FPM (Rotary Seal);Stainless Steel 440C (Ball Bearing, Gasket);Polyacetal (Collet, Release Button, Snap Ring)

Show UNSPSC/ECL@SS

£ 44.96 ^{excl. VAT}

/ Each

£ 53.95 ^{incl. VAT}

Delivery usually within ( 4 ) days

SMC KXL06-M5 FITTING

Product details : SMC KXL06-M5 FITTING
