SMC KSL04-M5 FITTING
Rotary Fitting
References
smc:KSL04-M5
rubix:124A2910
Technical specifications
| Material | PBT (Body);C3604BD (Stud, Holder, Guide);304 Stainless Steel (Chuck, Retainer);Polyacetal (Collet, Release Button, Snap Ring);NBR (O-Ring, Packing, Rotary Seal);Oil-Containing Polyacetal (Slide Bearing);Bearing Steel (Ball Bearing);304 Stainless Steel, NBR (Gasket) |
|---|---|
| Connection 1 | 4 mm |
Product details : SMC KSL04-M5 FITTING

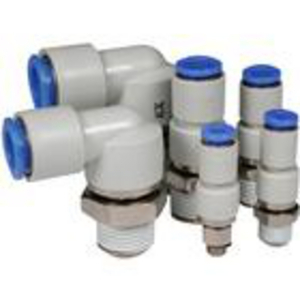

Rotary one-touch fitting series KS comes with a ball race bearing for oscillating or rotating applications. KS series comes in 5 tube sizes ranging from 4 to 12mm. One touch collet includes anti tube rotation mechanism. KS is suitable for copper free applications.
•Rotary, One-touch fitting (standard)
•Metric threads
•Tube OD: Ø4, Ø6, Ø8, Ø10, Ø12
•Maximum operating pressure: 1.0 MPa
•Ambient & fluid temperature: -5 to 60°C
Model: L (Male Elbow)
Applicable Tube OD: Ø4 mm
Port Size: M5 (M5X0.8)
Sealant: w/o Sealant
•Metric threads
•Tube OD: Ø4, Ø6, Ø8, Ø10, Ø12
•Maximum operating pressure: 1.0 MPa
•Ambient & fluid temperature: -5 to 60°C
Model: L (Male Elbow)
Applicable Tube OD: Ø4 mm
Port Size: M5 (M5X0.8)
Sealant: w/o Sealant
Technical specifications
Attributes
| Logistic Weight | 9 g |
|---|---|
| Material | PBT (Body);C3604BD (Stud, Holder, Guide);304 Stainless Steel (Chuck, Retainer);Polyacetal (Collet, Release Button, Snap Ring);NBR (O-Ring, Packing, Rotary Seal);Oil-Containing Polyacetal (Slide Bearing);Bearing Steel (Ball Bearing);304 Stainless Steel, NBR (Gasket) |
| Connection 1 | 4 mm |
| Profile | KS |
| Connection 2 | M5x0,8 |
| Min. temperature | -5 °C |
| Max. temperature | 60 °C |
Show UNSPSC/ECL@SS
£ 12.41 excl. VAT
/ Each
£ 14.89 incl. VAT
In stock: Next day delivery
