References
SKF:SHT 90
Rubix:233A3568
EAN:7316577641472
Documents

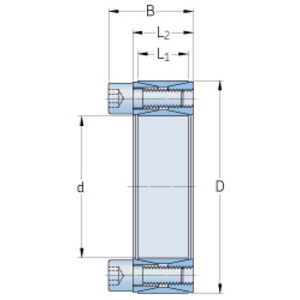

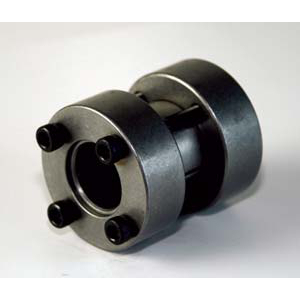

Product details : SKF SHT90 SH BUSHINGS
The inner and outer components of the SH bushing are threaded to correspond to a divided taper angle. A nut with screws is fitted to the inner component. When the screws are tightened, the outer component is subject to axial pressure and "climbs" up the thread on the inner component. The slotted inner component will be pressed against the shaft and the outer component, if slotted, will be pressed against the hub.
Technical specifications
Attributes
| Transmissible torque | 10000 N.m |
|---|---|
| Type | sh bushing |
| Total length with screws | 123.5 mm |
| Total length without screws | 100 mm |
| Tightening torque for screws | 60 N.m |
| Number of screws | 6 |
| Axial force | 224 kN |
| Shaft diameter | 90 mm |
Show UNSPSC/ECL@SS
£ 635.83 excl. VAT
/ Each
£ 763.00 incl. VAT
- Delivery usually within ( 3 ) days
