References
SNR:MUCPPL208
Rubix:205A5056
Manufacturer :MUCPPL208
EAN:3413520461478
Technical specifications
| Inner diameter | 40 mm |
|---|---|
| Fixation centre-to-centre distance | 137 mm |
| Shaft Height | 49.2 mm |

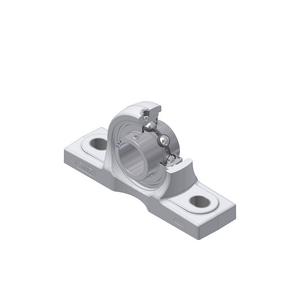

Product details : SNR MUCPPL208 BEARING UNIT
Thermoplasic housing, stainless steel insert ball bearing with socket set screws,seal with slinger, food grease
Technical specifications
Attributes
| Inner diameter | 40 mm |
|---|---|
| Fixation centre-to-centre distance | 137 mm |
| Shaft Height | 49.2 mm |
| Material | pbt (polybutylene terephthalate) thermoplastic resin |
| Total bearing width | 21 mm |
| Outer diameter | 80 mm |
| Diameter of fixation holes | 14 mm |
| Mounting typ | flat-base pillow block |
| Height | 49.2 mm |
| Length | 184 mm |
| Sealing | domyślnie otwarte (brak uszczelnienia wału); opcjonalnie dostępne ochronne zaślepki/pokrywy (otwarte lub zamknięte) |
| Lubrication | pre-greased with food-grade grease (nlgi 2; usda h1 / meets fda 21 cfr 178.357 requirements) |
| Series | mucppl200 |
| Weight | 0.95 kg |
| Number of holes | 2 |
| Basic static load, radial - C0r | 14300 N |
| Basic dynamic load, radial - Cr | 24900 N |
| Width | 49.2 mm |
Show UNSPSC/ECL@SS
£ 72.96 excl. VAT
/ Each
£ 87.55 incl. VAT
- Delivery usually within ( 3 ) days
